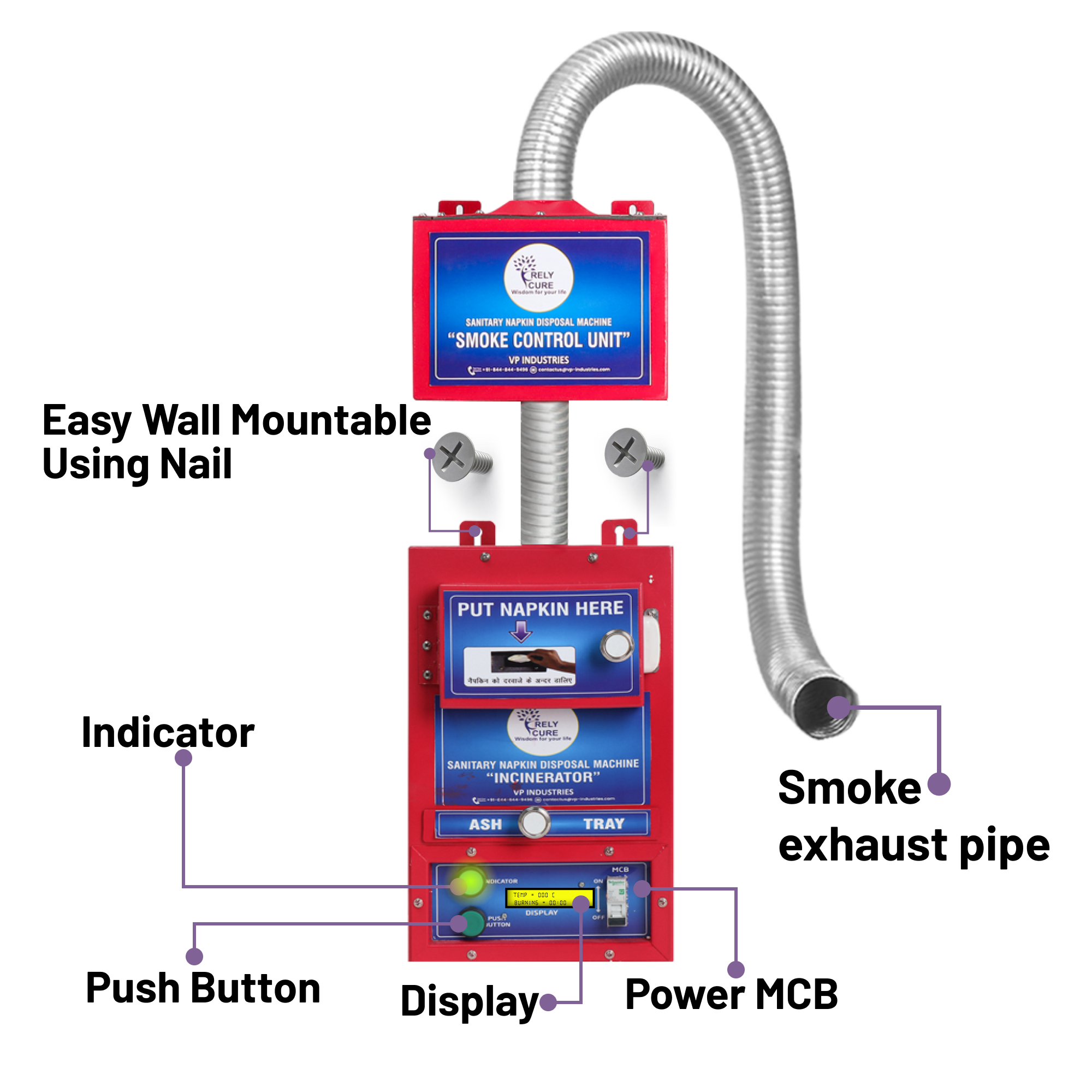

| TYPE OF Machine |
Wall Mountable & Front loading |
| Model of Function |
Electronically operated, Fully Automatic |
| Colour |
RED with Vinyl Branding Sticker |
| Type of Door Lock |
Magnetic Lock Catcher |
| Burning Capacity |
180-200 Pads per day | 10-12 pads per cycle | Insert up to 6 pad at a time |
| Burning Time |
15-20 minutes |
| Incinerator Dimensions |
Length-255 mm x Breadth-255 mm x Height-405 mm, Weight-12 kg |
| Smoke Control Unit Dimensions |
Length-250 mm x Breadth-250 mm x Height-200 mm, Weight-3 kg |

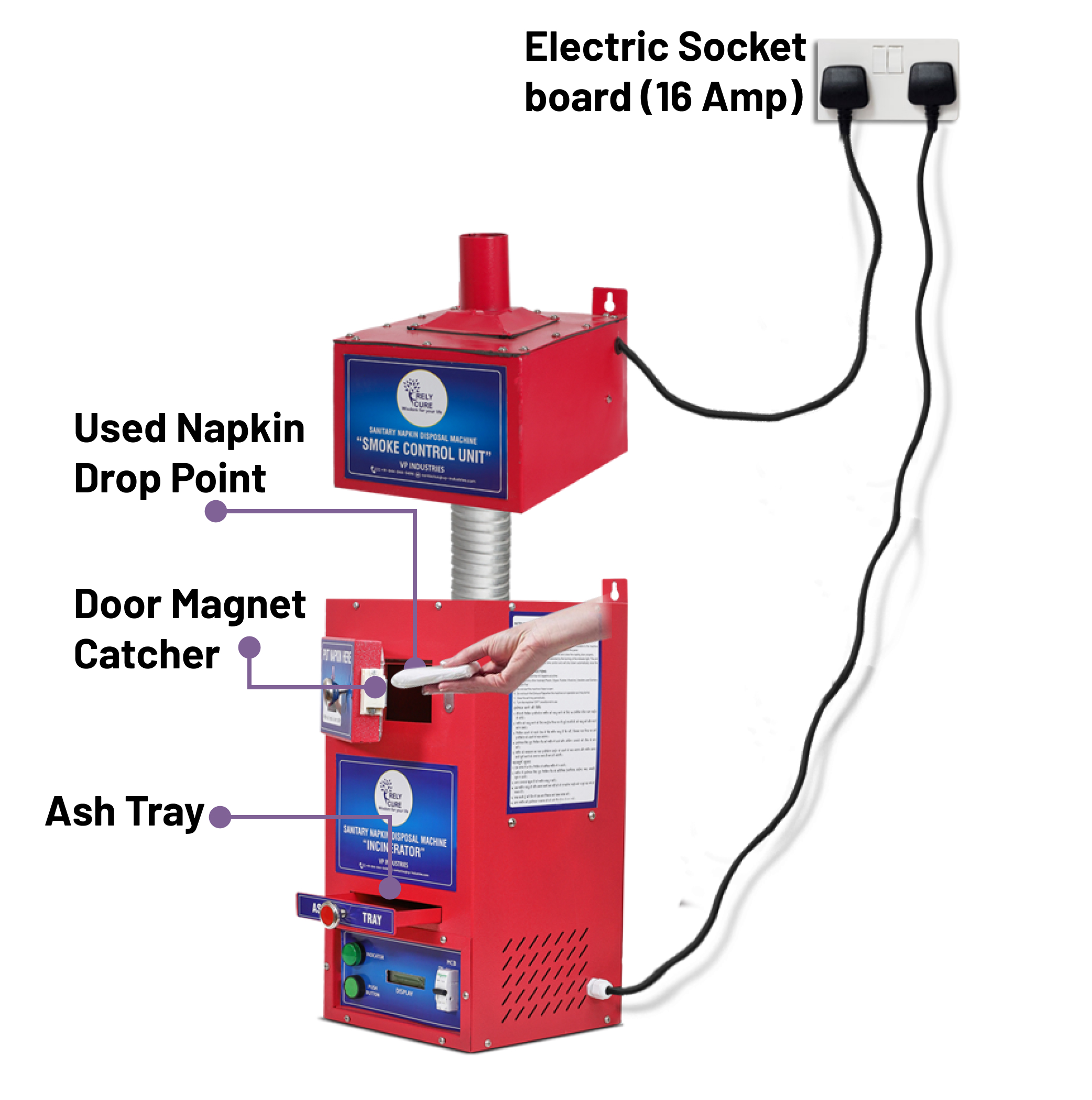

| Napkin Loading Method |
Open the door & put the napkin in drop point, close the door properly. |
| Operating Mechanism |
Turn on MCB and Press the Push Button Start to the Machine and wait for 15-20 minutes for the burning process |
| Machine Functioning |
Burn used Sanitary Napkins to sterile ash and stop automatically (auto turn off feature), easy removing Ash collecting tray ensures cleanliness. |
| Burning Waste |
Completely burn the solid Napkin, Residue Ash per Napkin less than 1 milligram |
| Digital Display |
Provided Automatic digital display controller to see actual set Timer and Temperature |
| Electrical part |
Safety MCB (16Amp), Indicator, Push Button, 800W Ceramic Heater |
| Temperature |
Minimum Burning Temperature 400 degrees inner burning chamber and Skin temperature of the unit under operation 16°C |
| Power Requirement |
Power supply 230v (16 Amp) |
| Material of Thermal Insulation |
Double thermal insulation for extra protection of ceramic fibre board (Thickness: 25mm) & glass fibre blanket (density 64) |
| Machine Material |
Mild steel Body with Epoxy anti rust proof powder coated for superior finish |
| Emission Outlet pipe location |
Top of machine (To be supplied along with machine 5 ft) |
| Accessories Included |
2 nos Pvc Wall Plug with 2 nos Screws, C clamp, U Clamp, Aluminum Tape and User Manual |
| Warranty |
12 Months Standard Brand Warranty |
| Type of packaging |
Packing of Thermocol and Carton Cardboard Fitment Box |
| Easy to Installation |
With the help of mounting accessories provided, hang the machine on wall & start collecting the napkins. |
| Customer Support |
Available by 24x7 basis |
